Identity, Access, Secrets and Trust Management

Document Control:
Version: 1.0
Last Updated: January 30, 2026
Owner: Paul Leone

1. Architecture Overview

A comprehensive zero-trust identity architecture combines hierarchical Public Key Infrastructure (PKI), centralized authentication (SSO/MFA), enterprise directory services (Active Directory), and encrypted secrets management (Vaultwarden) to provide defense-in-depth identity controls. This multi-layered approach ensures every user, device, and service is continuously authenticated, authorized, and audited across the entire infrastructure stack.

Security Impact

  • Centralized identity eliminates password sprawl and reduces credential-stuffing risk
  • MFA enforcement prevents compromised passwords from granting unauthorized access
  • Hierarchical PKI provides cryptographic trust anchors for TLS/mTLS
  • Offline root CA protects high-value signing keys from online attacks
  • Automated certificate lifecycle management prevents outages caused by expired certificates
  • Encrypted secrets vault centralizes sensitive data with zero-knowledge encryption

Deployment Rationale

Enterprise environments deploy similar architectures where Active Directory manages Windows domain authentication, OAuth2/OIDC provides SSO for web applications, PKI issues certificates for TLS encryption, and password managers centralize secrets. This lab demonstrates hands-on proficiency with protocols used in Fortune 500 identity stacks (LDAP, Kerberos, OAuth2, OIDC, SAML, ACME) and modern zero-trust patterns (continuous verification, least-privilege access, encrypted communications). The separation of concerns (PKI, SSO, directory, secrets) provides defense-in-depth where compromise of one system doesn't expose all identity data.

Architecture Principles Alignment

  • Defense in Depth: Multiple authentication factors (password + TOTP), separate trust domains (AD for Windows, Authentik for web), offline root CA isolation
  • Secure by Design: Mandatory TLS via PKI, MFA enforced by default, secrets encrypted at rest with zero-knowledge encryption
  • Zero Trust: Every request authenticated (SSO/MFA); certificates verify service identity (mutual TLS); no implicit trust based on network location

Diagram Placeholder: Identity Architecture Overview (2 images)

2. PKI/Certificate Authority Configuration

2.1 Overview and Hierarchy

The lab PKI follows a two-tier architecture with an offline root CA and an online intermediate CA powered by StepCA. The offline root CA acts as the long-term trust anchor, while the intermediate CA handles day-to-day certificate issuance for internal services, Kubernetes workloads, web applications, and mTLS-enabled components.

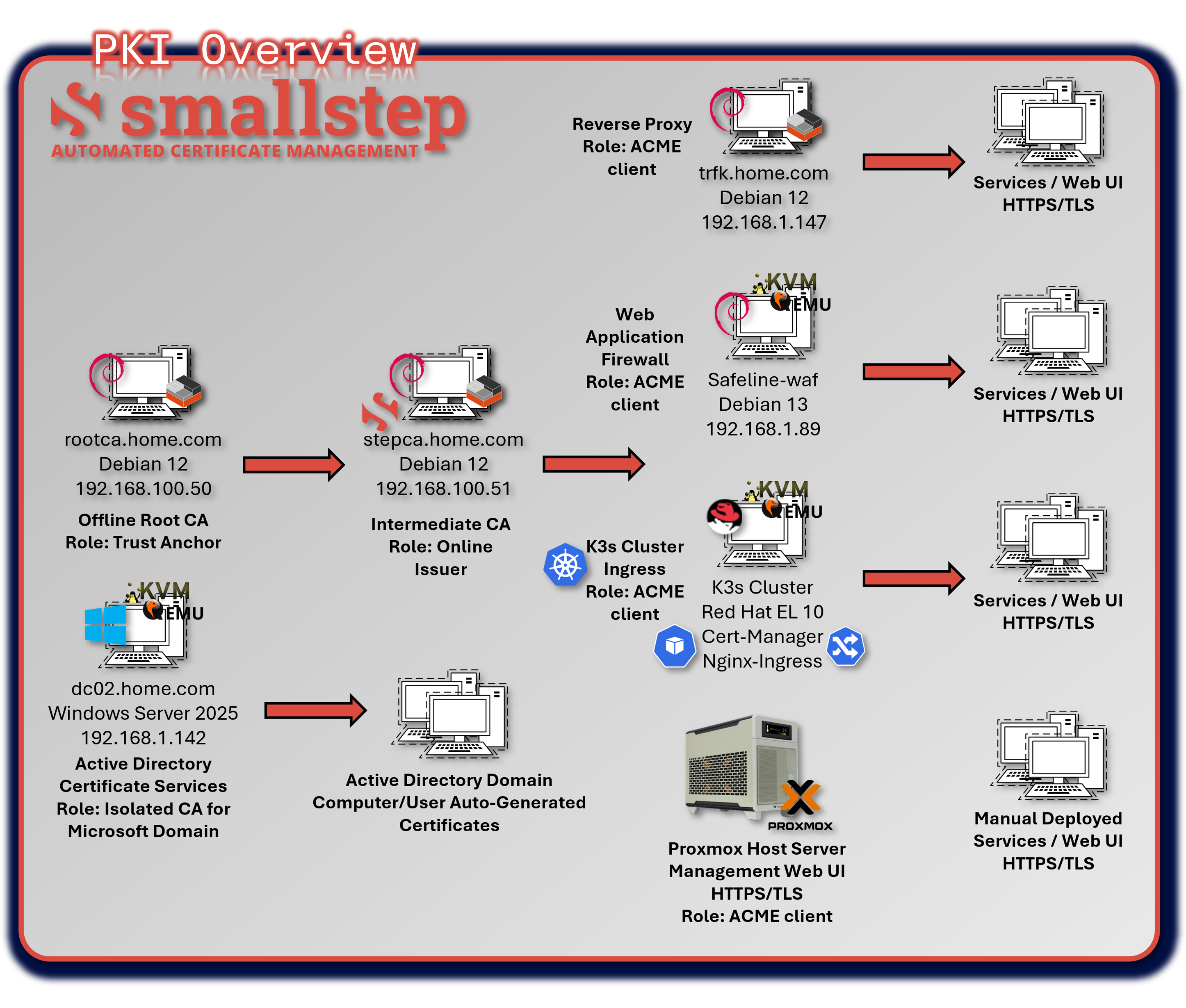

StepCA Certificate Flow
Lab PKI Overview / StepCA Chain of Trust

Security Impact

  • Offline root CA prevents exposure of high-value signing keys
  • Intermediate CA enables automated certificate issuance and rotation
  • TLS/mTLS ensures encrypted communication and service identity validation
  • PKI-backed trust anchors support zero-trust service-to-service authentication

Deployment Rationale

A two-tier PKI mirrors enterprise best practices by separating long-term trust from operational issuance. This design minimizes root CA exposure, simplifies certificate lifecycle management, and supports automated issuance through ACME/StepCA for Kubernetes, web services, and internal APIs.

Architecture Principles Alignment

  • Defense in Depth: Root and intermediate CAs form layered trust boundaries
  • Secure by Design: Automated certificate rotation prevents outages and stale credentials
  • Zero Trust: Certificates validate every service identity; no implicit trust in network location

2.2 PKI Architecture and Roles

Tier Host/IP Role Key Functions
Offline Root CA 192.168.100.50 Trust Anchor Signs Intermediate CA certificate; stored offline
StepCA (Intermediate CA) 192.168.100.51 Online Issuer Issues leaf certificates via ACME or manual process; enforces policy
ACME Clients Various Certificate Consumers Request certificates via ACME protocol (e.g., Traefik, Vaultwarden, NGINX)
Active Directory Certificate Services 192.168.1.142 AD Auto-enroll Computer and User auto-enroll domain services. Isolated RootCA

Root CA Configuration

  • Platform: Debian 12 LXC container (stopped when not in use)
  • Software: OpenSSL 3.0.x
  • Key Type: ECC P-384 (modern alternative)
  • Storage: Private key encrypted with AES-256
  • Access Control: Root key file permissions set to 0400 (read-only by owner)
  • Lifecycle: Used only for signing intermediate CA cert and CRL generation
  • Validity: 20 years (root), 10 years (intermediate)

Security Hardening

  • Root CA container only powered on during signing operations
  • Private key passphrase stored in Vaultwarden, never saved to disk
  • Regular backups

StepCA Intermediate CA

  • Platform: Debian 12 LXC container (always online)
  • Software: Smallstep Step-CA v0.25.x
  • Endpoints:
  • ACME: https://stepca.home.com/acme/acme/directory
  • Admin API: https://stepca.home.com (mTLS authentication)
  • Key Type: ECC P-256 (default for leaf certificates)
  • Validity Periods:
  • Default: 24 hours (short-lived for automated rotation)
  • Max: 1 year (for services requiring longer validity)

Certificate Lifecycle Management

Phase Automation Frequency
Initial Request ACME client (Traefik, certbot) On-demand
Issuance StepCA auto-validates domain <5 seconds
Renewal Traefik automatic renewal 30 days before expiry
Revocation Manual via step-ca CLI As needed
CRL Updates StepCA generates CRL Daily

2.3 Trust Chain and Workflow

  1. Root CA is created offline and used to sign the Intermediate CA certificate. The RootCA was configured as an LXC running Debian Linux, Certificate was created using OpenSSL.
  2. StepCA runs online and handles certificate requests via ACME. StepCA is also running in a Debian-based LXC.
  3. ACME Clients authenticate and request certificates for their FQDNs.
  4. Leaf certificates are issued with appropriate X.509 extensions and validity periods.
  5. Clients and services trust the Intermediate CA, which chains up to the RootCA.

2.4 X.509 Certificate Profile

General Attributes

Field Value
Version X.509 v3
Signature Algorithm ecdsa-with-SHA256
Issuer O=Intermediate CA - Leone Lab, CN=Intermediate CA - Leone Lab Intermediate CA
Subject CN=[servername].home.com
Validity 1 year
Public Key Algorithm id-ecPublicKey (Elliptic Curve Cryptography)
Key Size 256-bit
Curve prime256v1 (NIST P-256)
Key Usage Digital Signature (critical)
Extended Key Usage TLS Web Server Authentication; TLS Web Client Authentication
Subject Alternative Name (SAN) DNS:servername.home.com

Subject Public Key Info

  • Algorithm: id-ecPublicKey (Elliptic Curve Cryptography)
  • Key Size: 256-bit
  • Curve: prime256v1 (NIST P-256)

X.509v3 Extensions

Extension Value
Key Usage Digital Signature (critical)
Extended Key Usage TLS Web Server Authentication, TLS Web Client Authentication
Subject Alternative Name (SAN) DNS:[servername].home.com, home.com

2.5 Operational Considerations

Diagram Placeholder: Root CA Security Screenshot

Root CA Security

  • Stored offline (air-gapped)
  • Used only to sign Intermediate CA
  • Private key protected with strong passphrase

StepCA Configuration

  • Runs as a systemd service on 192.168.100.51
  • ACME endpoint exposed to internal clients
  • Policy templates enforce:
  • Allowed domains (*.home.com)
  • Validity periods
  • Key types (ECC and RSA)

2.6 Active Directory Certificate Services

Windows 2025 Server, dc02.home.com configured as the domain enterpriseCA supporting local AD auto-enrollment.

User and Computer home.com templates supporting domain auto-enrollment. Computer/policies/Windows settings/security settings/public key policies/certificate services client-auto-enrollment/Enabled in the default domain policy.

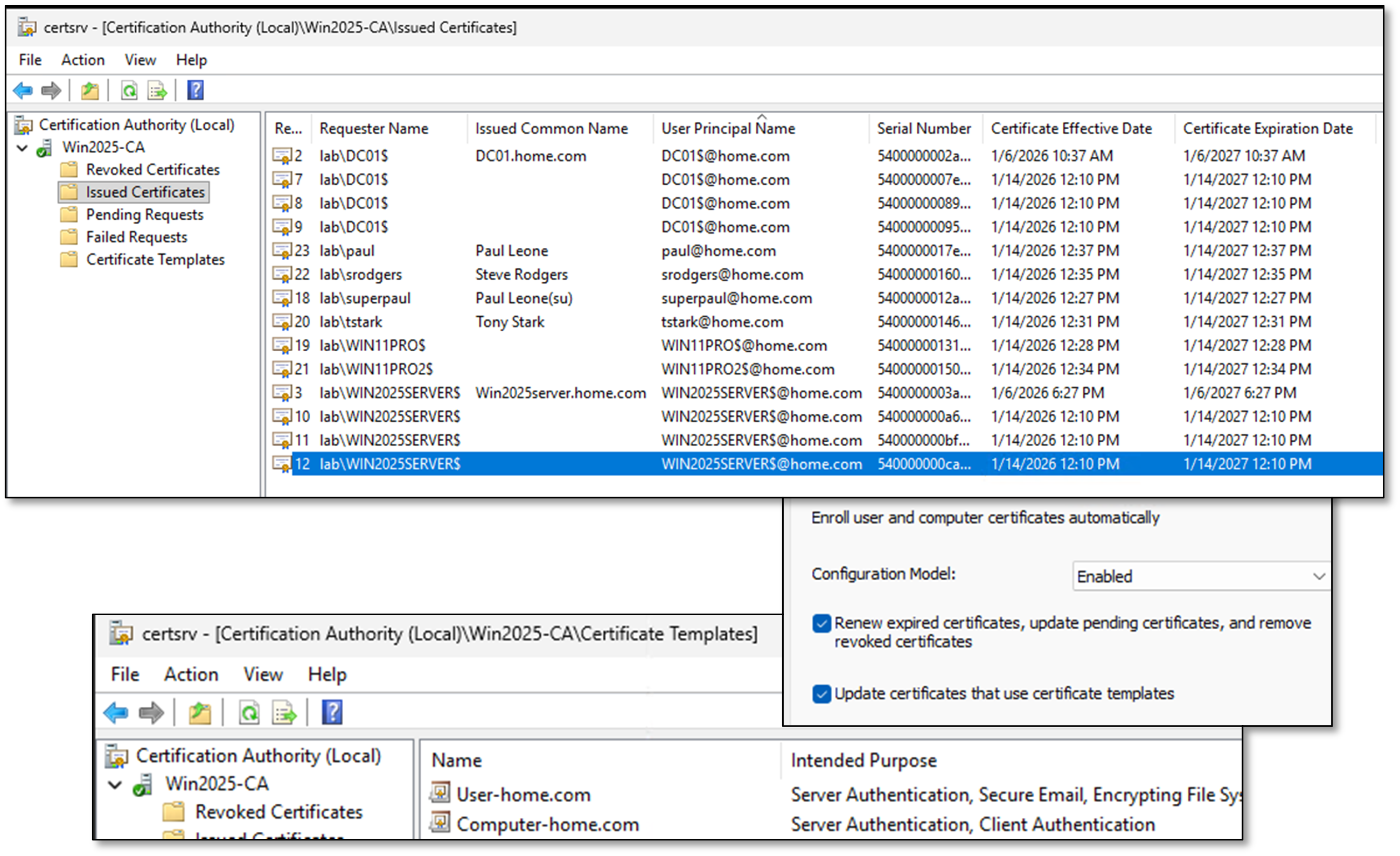

Safeline WAF Configuration
Issued Certificates / Template Information.

Certificate Details Trusted Root Certificate: Win2025-CA

Safeline WAF Configuration
Win2025-CA Trust.

3. Identity and Access Management

Identity services are split between Authentik for modern SSO/OIDC-based authentication and Microsoft Active Directory for Windows domain services. This dual-stack approach mirrors hybrid enterprise environments where Linux, containerized workloads, and Windows systems coexist.

3.1 Authentik Identity Stack

Deployment Overview

Authentik provides centralized identity and access management using OAuth2, OIDC, and proxy-forwarding protocols. It acts as the primary identity provider for web applications, Kubernetes workloads, dashboards, and internal services. Policy-driven access control enforces MFA, group-based authorization, and conditional access rules.

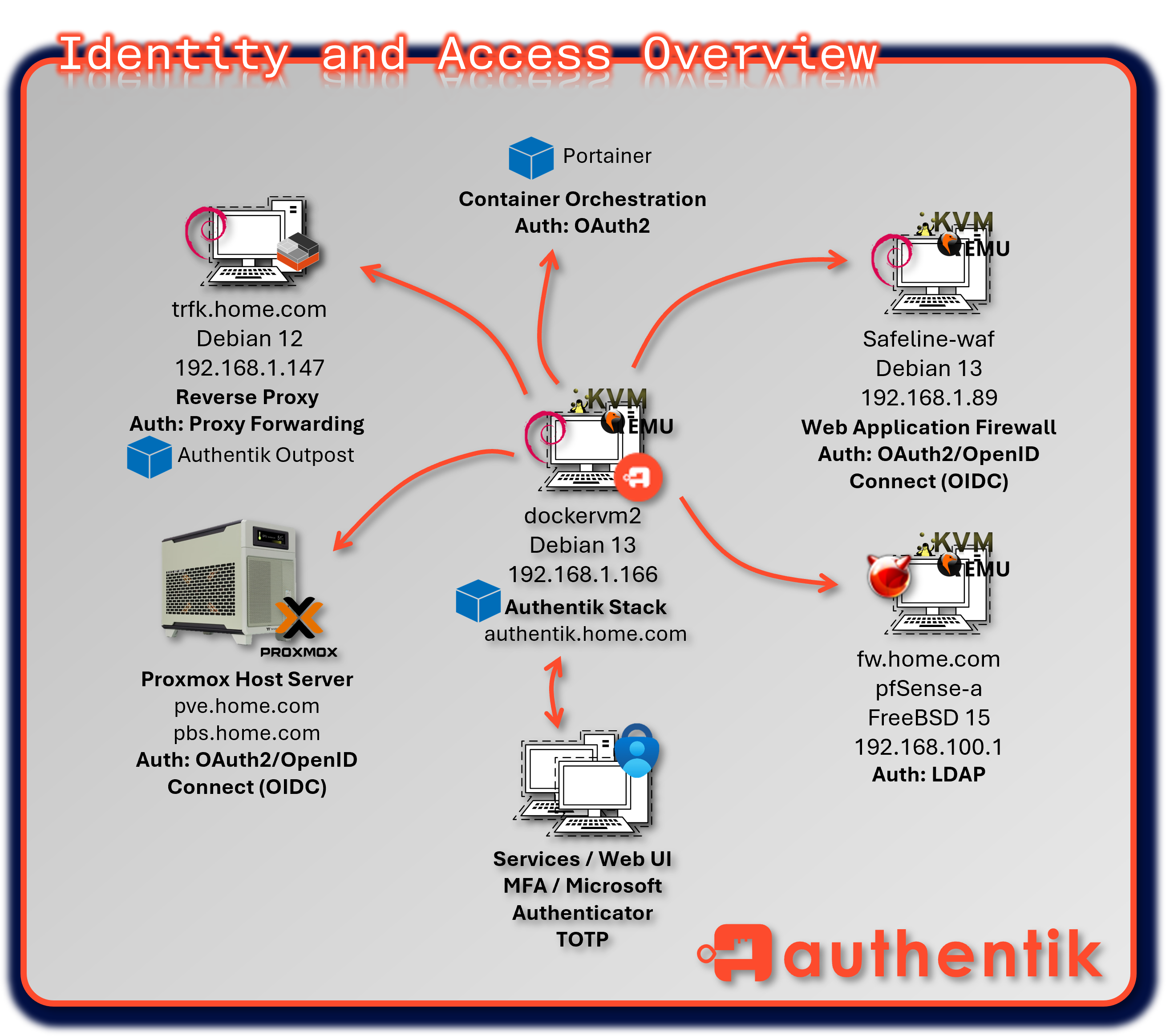

Authentik Logo
Authentik Identity Provider Overview.

Security Impact

  • Consolidates authentication across VMs, containers, and web apps
  • Enforces MFA and policy-based access control
  • Provides OIDC/OAuth2 SSO for dashboards, WAF-protected portals, and internal services
  • Reduces password reuse and improves auditability

Deployment Rationale

Authentik mirrors enterprise SSO platforms (Azure AD, Okta, Ping) and demonstrates proficiency with modern identity protocols. It centralizes authentication for Linux-based and containerized workloads while integrating cleanly with reverse proxies, WAFs, and Kubernetes ingress controllers.

Architecture Principles Alignment

  • Defense in Depth: Separate trust domain for web and application authentication
  • Secure by Design: MFA, OIDC/OAuth2, and policy-driven access
  • Zero Trust: Every request authenticated; no implicit trust in session or network

Configuration

The Authentik identity stack is deployed within a Docker environment and comprises four core containers:

  • Authentik Server -- main application interface and API layer
  • Authentik Worker -- handles background tasks, flows, and integrations
  • PostgreSQL -- primary relational database for Authentik
  • Redis -- caching and session management for performance optimization
  • Outpost for Traefik and various services

The Authentik interface is secured using TLS certificates issued by Step CA, ensuring encrypted communication across all services. Multi-Factor Authentication (MFA) is enforced using the Microsoft Authenticator app, adding a layer of security for user logins and administrative access.

Authentik acts as the unified identity provider for multiple services in the lab, streamlining authentication and access control through OAuth2 and reverse proxy integration:

Diagram Placeholder: Proxmox OAuth2 Login Screenshot

  • Proxmox VE - Web-based virtualization management protected via OAuth2/OpenID Connect (OIDC), allowing users to log in through Authentik via federated identity and benefit from centralized governance.

Diagram Placeholder: Portainer OAuth2 Login Screenshot

  • Portainer - Container orchestration and Docker management secured using OAuth2 authorization framework, enabling SSO and role-based access control.

  • pfSense - Firewall and network management access connected to Authentik's LDAP interface, validating username/passwords against the LDAP directory.

  • Webservers - Apache and Nginx websites protected via OAuth2/OpenID Connect (OIDC), allowing users to log in through Authentik via federated identity and benefit from centralized governance.

  • Traefik and Services - Reverse proxy and ingress controller secured via proxy forwarding, with Authentik injecting identity headers and managing session-based access to backend services.

  • Services: Checkmk, Pi-hole, Pulse, WUD, Uptime Kuma, Changedetection.io, Heimdall, Elastic and Safeline admin UI

Authentication Flows

  1. User Access Request: User navigates to protected service (e.g., Portainer)
  2. Redirect to Authentik: Service redirects to Authentik login page
  3. Primary Authentication: User provides username/password
  4. MFA Challenge: Microsoft Authenticator TOTP code required
  5. Consent Screen: User authorizes service access (if first time)
  6. Token Issuance: Authentik issues JWT access token
  7. Service Access: User redirected back with token, gains access

Multi-Factor Authentication

  • Primary: Microsoft Authenticator (TOTP)
  • Backup: WebAuthn (FIDO2 security keys)
  • Recovery: One-time backup codes (10 codes, single-use)
  • Enrollment: Required on first login, cannot be bypassed
  • Policy: MFA mandatory for all roles

Security Features

  • Account Lockout: 5 failed attempts, 15-minute lockout
  • Session Management: 12-hour session timeout, refresh token rotation
  • Audit Logging: All authentication events logged to PostgreSQL, forwarded to Elastic SIEM
  • Reputation: IP-based rate limiting and geo-blocking

TLS Configuration

  • Certificate: Issued by StepCA Intermediate CA
  • Validity: 365 days with automated renewal via ACME
  • Protocol: TLS 1.3/1.2 only (TLS 1.1 disabled)
  • Cipher Suites: Modern ECDHE+AES-GCM only

Diagram Placeholder: Authentik Screenshots (3 images)

3.2 Microsoft Active Directory

Deployment Overview

Active Directory provides enterprise-grade identity services for Windows-based infrastructure. A subset of Windows 11 Pro VMs are joined to a centralized domain hosted on Windows Server 2022 (dc01) and Windows Server 2025 (dc02). AD manages Kerberos authentication, Group Policy enforcement, and domain-joined machine trust.

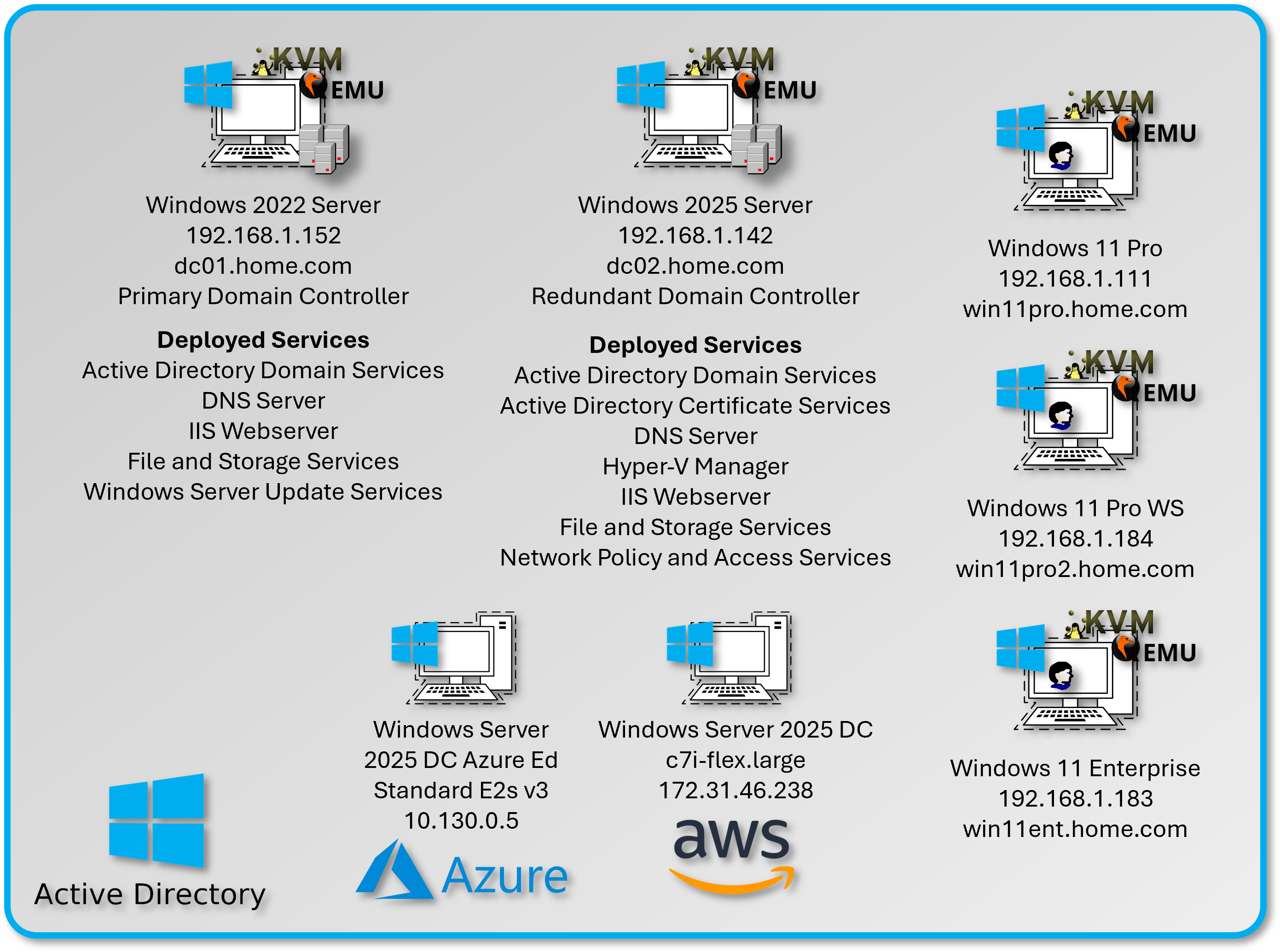

Active Directory Logo
Microsoft Active Directory Overview.

Security Impact

  • Centralized Windows authentication reduces credential sprawl
  • Kerberos provides secure, ticket-based authentication
  • Group Policy enforces security baselines and configuration hardening
  • Domain-joined systems support certificate auto-enrollment via PKI

Deployment Rationale

AD remains the backbone of enterprise Windows identity. This deployment simulates production domain environments and demonstrates understanding of Kerberos, LDAP, GPOs, and domain trust relationships.

Architecture Principles Alignment

  • Defense in Depth: Windows trust domain isolated from web identity domain
  • Secure by Design: Kerberos authentication and GPO-based hardening
  • Zero Trust: Domain authentication required for all Windows systems

Configuration

The domain controllers are configured with the following roles:

Role Purpose
Active Directory Domain Services (AD DS) Centralized identity, authentication, and directory management
Active Directory Lightweight Directory Services (AD LDS) Lightweight directory for app-specific identity needs
DNS Server Authoritative DNS Service for the AD Domain. Kerberos, LDAP, GPO, Login and General Client Requests
File and Storage Services Network shares and storage provisioning
Active Directory Certificate Services EnterpriseCA supporting the domain
IIS Web Services WSUS Admin Portal
Windows Server Update Services (WSUS) Centralized patch management for Windows clients

Diagram Placeholder: Domain Controller Screenshots (2 images)

Active Directory Configuration

Diagram Placeholder: AD Configuration Screenshot

Domain Name

  • Domain: home.com
  • Domain Controllers: dc01.home.com, dc02.home.com
  • Forest Functional Level: Windows Server 2016
  • Domain Functional Level: Windows Server 2016
  • Single forest, single domain design
  • Future expansion: Child domains for lab segmentation
  • Trust relationships: None (isolated lab environment)

DNS Server

  • Authoritative for the Active Directory Domain. Name resolution and SRV record support.

Certificate Authority

  • Isolated EnterpriseCA supporting local services, running on dc02.

Organizational Units (OUs)

OU Purpose
Users Contains all domain user accounts
Server/Domain Admins Contains privileged accounts
Desktop PCs Contains domain-joined Windows 11 clients
Servers Contains domain-joined Windows Servers

3.3 User and Group Policy Management

Diagram Placeholder: User and Group Policy Screenshots (2 images)

User Accounts

  • Standard domain users created under the Users OU
  • Naming convention: first initial+lastname

Security Groups

Group Name Purpose
Domain_Admins Full administrative privileges
Server Admins Select server privileges
PowerUsers Elevated access to specific systems
StandardUsers Default access level for lab participants
NAS_Access Mapped drive access to NAS shares

Groups are used to assign permissions, drive mappings, and GPO filtering.

Group Policies

Group Policies are applied via GPOs linked to the appropriate OUs. Policies are divided into Computer Configuration and User Configuration.

Computer Policies

Diagram Placeholder: Password Complexity Screenshot

Password Complexity

  • Minimum Age: 30 days
  • Maximum Age: 60 days
  • Minimum Password Length: 8
  • Windows Complexity Requirements: Enabled
  • Password History: 3 Remembered

Diagram Placeholder: Account Lockout Screenshot

Account Lockout Policy

  • Account Lockout Duration: 10 mins
  • Threshold: 5 Attempts
  • Allow Admin Lockout: Enabled
  • Reset: 10 mins
User Policies

Diagram Placeholder: Desktop/System Settings Screenshot

Desktop/System Settings

  • Custom Desktop Wallpaper: Enabled
  • Prohibit Changes: Enabled
  • Prohibit adding, closing, deleting, editing items: Disabled
  • Power Management
  • Prompt for Password on Resume from Hibernation/Suspend: Enabled
  • Removable Storage Access
  • All Removable Storage classes: Deny all Access: Enabled

Diagram Placeholder: Personalization Screenshot

Personalization

  • Password Protect the Screen Saver: Enabled
  • Screen Saver Timeout: Enabled
  • Force a Specific Screen Saver: Enabled

User Preferences

Drive Mapping

  • Drive mapping to local NAS folders.
  • \DS\Backups, \DS\Software, \dc01\Documents

Diagram Placeholder: Drive Mapping Screenshot

Assigned Policies/Preferences

Diagram Placeholder: Assigned Policies Screenshot

GPO User Configuration Policies

Policy Category Setting Value/Action
Desktop Personalization Custom wallpaper \dc01\NETLOGON\wallpaper.jpg
Desktop Personalization Prohibit wallpaper changes Enabled
Desktop Personalization Force specific screensaver Enabled (Blank.scr)
Desktop Personalization Screensaver timeout 10 minutes
Desktop Personalization Password-protect screensaver Enabled
Power Management Require password on resume Enabled
Power Management Sleep timeout (on battery) 15 minutes
Power Management Sleep timeout (plugged in) 30 minutes
Removable Storage All removable storage classes Read-only (not full deny)
Removable Storage Exceptions IT Admin group
Start Menu & Taskbar Remove Run command Enabled (Standard Users only)
Start Menu & Taskbar Disable Command Prompt Enabled (Standard Users only)
Drive Mappings H: drive \dc01\Users\%USERNAME%
Drive Mappings S: drive \DS\Software (read-only)
Drive Mappings B: drive \DS\Backups (NAS_Access group)

GPO Computer Configuration Policies

Policy Category Setting Value/Action
Password Complexity Minimum length 8 characters
Password Complexity Complexity requirements Enabled (upper; lower; number; symbol)
Password Complexity Password history 3 passwords remembered
Password Complexity Minimum age 30 days
Password Complexity Maximum age 60 days
Account Lockout Lockout threshold 5 invalid attempts
Account Lockout Lockout duration 10 minutes
Account Lockout Reset counter after 10 minutes
Account Lockout Administrator lockout Enabled
Windows Firewall Domain profile Enabled
Windows Firewall Block inbound (default) Enabled

Security Hardening

  • Kerberos Authentication: AES256 encryption enforced
  • LDAPS: Enabled on port 636 with Step-CA issued certificate
  • SMB Signing: Required for all domain communications
  • NTLM: Restricted, Kerberos preferred
  • Admin Accounts: Separate accounts for daily use vs. privileged access

DNS Integration

  • Authoritative for home.com zone
  • SRV records for Kerberos (_kerberos._tcp.home.com)
  • Isolated DNS: no integration to Pi-hole

4. Secrets Management

Secrets management is centralized through Vaultwarden, which provides encrypted storage for passwords, SSH keys, API tokens, and sensitive notes. This eliminates reliance on commercial password managers while maintaining enterprise-grade encryption and cross-platform access.

4.1 Vaultwarden Password Manager

Deployment Overview

Vaultwarden is a lightweight, self-hosted implementation of the Bitwarden protocol. All data is encrypted client-side before transmission, ensuring zero-knowledge storage. Vaultwarden is accessible via web, desktop, mobile, and browser extensions. Automated backups store encrypted vault data on the NAS and Proxmox Backup Server.

Security Impact

  • Zero-knowledge encryption protects credentials even if the server is compromised
  • Centralized secrets reduce password reuse and unmanaged credentials
  • Multi-platform access ensures secure credential availability across devices
  • Automated backups protect against data loss

Deployment Rationale

Vaultwarden mirrors enterprise password managers (Bitwarden, 1Password, Keeper) and demonstrates secure secrets management without relying on third-party cloud services. It supports SSH key storage, API token management, and secure note handling.

Architecture Principles Alignment

  • Defense in Depth: Centralized secrets reduce unmanaged credentials
  • Secure by Design: Client-side encryption and automated backups
  • Zero Trust: Secrets never stored or transmitted unencrypted

Configuration

Vaultwarden is deployed as a self-hosted password manager to secure credentials, SSH keys, and sensitive notes across the lab. Key features include:

  • End-to-End Encryption: All data is encrypted client-side before transmission, ensuring zero-knowledge storage
  • Multi-Platform Access: Web interface, desktop apps, mobile apps, and browser extensions
  • Automated Backups: Vault data is backed up to the NAS and Proxmox Backup Server via scheduled backup jobs

Architecture

Component Technology Location Purpose
Vaultwarden LXC Container 192.168.1.4 Password vault server
Database SQLite (embedded) Persistent volume Vault data storage
Reverse Proxy Traefik 192.168.1.247 TLS termination; auth
Backup Job Cron + rsync NAS + PBS Automated vault backup

Security Architecture

Encryption Model: Zero-Knowledge Architecture

  • Client-Side Encryption: All vault data encrypted in browser/app before transmission
  • Master Password: Never transmitted to server, used to derive encryption key
  • Encryption Algorithm: AES-256-CBC for vault items
  • End-to-End: Server stores only encrypted blobs, cannot decrypt vault contents

Access Control

  • Master Password: Required for vault unlock
  • Two-Factor Authentication: TOTP via Microsoft Authenticator
  • Session Timeout: 15 minutes of inactivity
  • Vault Timeout Action: Lock (not logout, prevents re-sync delay)

TLS Configuration

  • Certificate: Step-CA issued, 365-day validity

Integration Points

  • CLI Access: Bitwarden CLI (bw) for automation and scripts
  • Browser Extensions: Chrome for autofill
  • SSH Agent: SSH key stored in vault, agent integration via CLI

Backup Strategy

  • Frequency: Weekly automated backup at 1 AM
  • Method: SQLite database file + attachments folder
  • Destinations:
  • Synology NAS (\DS\Backups\Vaultwarden)
  • Proxmox Backup Server (deduplicated, encrypted)
  • Retention: 6 versions plus 1 monthly

Diagram Placeholder: Vaultwarden Screenshot

5. Security Controls Summary

Identity and Access Security Controls

Control Framework

Control Domain Implementation Coverage
Authentication Multi-factor (password + TOTP/FIDO2) All critical services
Authorization OAuth2/OIDC with RBAC 12 integrated services
Certificate Management Automated ACME with Step-CA All internal TLS
Secrets Storage Vaultwarden zero-knowledge vault 100+ credentials
Directory Services Active Directory + Authentik Hybrid Windows/Linux
Session Management JWT tokens with refresh rotation Authentik SSO
Policy Enforcement GPO + Authentik policies Windows clients + web services
Audit Logging Authentik events + AD logs → Elastic Centralized visibility

Authentication Controls

Technology Strength Use Cases
Password + TOTP Medium-High Standard user accounts
Password + FIDO2 High Admin accounts (WebAuthn keys)
Certificate-based mTLS Very High Service-to-service auth
Kerberos High Windows domain authentication
LDAP Bind Medium pfSense; legacy services

Access Control Matrix

User Role Proxmox Portainer pfSense CheckMK AD Admin Vaultwarden
Standard User No No No View No Personal vault
Power User View Manage No View No Shared vault
Server Admin Manage Manage View Manage No Admin vault
Domain Admin Full Full Manage Full Full Full access

Certificate Lifecycle Security

Phase Security Control Risk Mitigation
Generation Root CA air-gapped; passphrase-protected Prevents root key compromise
Issuance ACME challenge validation (DNS/HTTP) Prevents unauthorized cert issuance
Storage Private keys in file system (0600 perms) Limits key exposure
Renewal Automated 30 days before expiry Prevents service outages
Revocation CRL + OCSP responder Timely invalidation of compromised certs
Distribution Trusted CA bundles in OS/container Ensures chain validation

6. Operational Resilience

Identity Service Continuity

Service Component Failure Mode Recovery Mechanism RTO
Authentik Server Container crash Docker restart policy <30s
PostgreSQL Database Database corruption Restore from daily backup <10 min
Step-CA Intermediate Service failure Systemd auto-restart <15s
Active Directory DC VM failure Restore from Proxmox backup <20 min
Vaultwarden Container crash Docker restart policy <30s
Redis Cache Cache loss Session re-authentication <5s (graceful)

Backup Strategy

Component Frequency Method Retention Encryption
Authentik DB Weekly PostgreSQL dump 6 months At rest (NAS)
Step-CA Config Weekly File-level backup 6 months At rest (NAS)
AD Domain Controller Weekly System State backup 6 months Windows backup encryption
Vaultwarden Vault Weekly SQLite + attachments 6 months AES-256 at rest
Root CA Private Key One-time Encrypted USB drive Offline storage Passphrase protected

Disaster Recovery Procedures

Scenario: Complete Authentik Failure

  1. Deploy fresh Docker containers from compose file (2 min)
  2. Restore PostgreSQL database from last backup (5 min)
  3. Restart Authentik server and worker containers (1 min)
  4. Verify SSO functionality across test services (2 min)

Total Recovery Time: <10 minutes

Scenario: Active Directory Domain Controller Failure

  1. Restore DC VM from Proxmox Backup Server (15 min)
  2. Verify DNS and Kerberos functionality (2 min)
  3. Test user authentication and GPO application (3 min)

Total Recovery Time: <20 minutes

Scenario: Step-CA Certificate Authority Compromise

  1. Revoke compromised intermediate CA certificate (immediate)
  2. Generate new intermediate CA from offline root (15 min)
  3. Update trust stores across all systems (30 min)
  4. Re-issue all leaf certificates via ACME (automated, 1 hour)

Total Recovery Time: <2 hours (automated after initial setup)

Monitoring and Alerting

Metric Monitored Tool Alert Threshold Notification
Authentik login failures Prometheus >10 failures in 5 min Discord webhook
Step-CA cert issuance Prometheus Failed ACME challenge Discord webhook
AD DC availability Uptime Kuma HTTP 5xx or timeout Discord webhook
Vaultwarden API Uptime Kuma HTTP error or 5s latency Discord webhook
Certificate expiry Uptime Kuma <30 days to expiry Discord webhook

7. Use Cases & Deployment Scenarios

Scenario 1: Automated Certificate Renewal for Web Services

Objective: Eliminate manual certificate management

Implementation:

  • Traefik configured with Step-CA ACME endpoint
  • Service deployment includes ACME labels (service.home.com)
  • Traefik requests certificate via ACME protocol
  • Step-CA validates domain ownership (DNS challenge)
  • Certificate issued with 365-day validity
  • Traefik auto-renews 30 days before expiry

Result: Zero-touch certificate management, no expired cert outages

Scenario 2: Centralized Credential Management for Team

Objective: Share admin credentials securely across lab users

Implementation:

  • Admin credentials stored in Vaultwarden shared collection
  • Collection access limited to Server_Admins group
  • Team members access vault via browser extension
  • Credentials auto-filled on login pages
  • All access logged with user ID and timestamp

Result: No plaintext credentials in wikis/spreadsheets, full audit trail

Scenario 3: Windows Client Provisioning with Group Policy

Objective: Deploy new Windows 11 client with hardened baseline

Implementation:

  • Join new VM to home.com domain
  • Computer object auto-placed in "Desktop PCs" OU
  • GPOs automatically applied within 90 seconds
  • User logs in, receives drive mappings and desktop wallpaper
  • WSUS policy applies, begins downloading patches

Result: Consistent, policy-driven configuration without manual intervention

Scenario 4: Certificate-Based Service Authentication (mTLS)

Objective: Secure API communication between services

Implementation:

  • Service A requests client certificate from Step-CA
  • Certificate includes Extended Key Usage: clientAuth
  • Service B configured to require client certificate
  • TLS handshake validates Service A cert against Step-CA chain
  • Mutual authentication established, API call succeeds

Result: Service-to-service authentication without shared secrets

8. Standards Alignment

Industry Framework Alignment

Framework/Standard Alignment Implementation Evidence
NIST 800-63B (Digital Identity) High MFA enforcement; password complexity
NIST 800-207 (Zero Trust) Moderate OAuth2/OIDC; microsegmentation
CIS Controls v8 High IAM controls (5.x; 6.x)
ISO 27001 (A.9 Access Control) Moderate RBAC; MFA; audit logging
FIPS 140-2 Partial AES-256; SHA-256; ECC P-256

NIST 800-63B Authentication Assurance Levels

AAL Level Requirements Lab Implementation
AAL1 Single-factor Standard user accounts (fallback)
AAL2 Two-factor (MFA) Password + TOTP (default for admins)

Zero Trust Principles (NIST 800-207)

Principle Implementation
Verify explicitly OAuth2 tokens with claims validation
Least privilege access RBAC in Authentik; AD security groups
Assume breach Microsegmentation; certificate-based auth
Continuous verification Session timeouts; token refresh rotation
Network segmentation OPNsense firewall isolates services

CIS Controls Implementation

Control Description Implementation
5.1 Establish secure configs GPO baseline; Authentik policies
5.2 Maintain secure configs Configuration backup; version control
5.3 Documented config standards This documentation
6.1 Centralized account mgmt Active Directory; Authentik
6.2 Use unique passwords Vaultwarden enforced
6.3 Disable dormant accounts AD account expiration policies
6.4 Restrict admin privileges Separate admin accounts; RBAC
6.5 Centralized authentication Authentik SSO; AD Kerberos
6.6 Multi-factor authentication TOTP + FIDO2 for admin access
6.7 Centralized access control OAuth2/OIDC; group-based permissions
6.8 Define and maintain RBAC AD security groups; Authentik roles

PKI Standards Compliance

Standard Requirement Implementation
RFC 5280 X.509 certificate format Step-CA compliant certificates
RFC 8555 ACME protocol Automated cert issuance
NIST FIPS 186-4 Digital signature algorithms ECDSA with SHA-256
CA/Browser Forum Baseline requirements 398-day max validity (browsers)
NIST SP 800-57 Key management ECC P-256 (128-bit security)

Password Policy Alignment (NIST 800-63B)

NIST Recommendation Lab Implementation
Minimum 8 characters 8 chars (AD); 12 chars (Authentik)
No complexity requirements Complexity required (legacy AD constraint)
No mandatory rotation 60-day rotation (AD); no rotation (Authentik)
Check against breached passwords Planned: HaveIBeenPwned integration
Rate limiting 5 attempts; 10-minute lockout

9. Integration Architecture

Service Integration Architecture

Identity Provider Mappings

Service Category Services (Count) Auth Method Provider
Virtualization Proxmox PVE, PBS (2) OAuth2/OIDC Authentik
Container Mgmt Portainer (1) OAuth2 Authentik
Network Security pfSense (2) LDAP Authentik
Monitoring CheckMK (1); Uptime Kuma (1); Pulse (1) Proxy Auth Authentik
Network Services Pi-hole (2) Proxy Auth Authentik
Automation WUD (1); Changedetect (1) Proxy Auth Authentik
Media Plex (1) Proxy Auth Authentik
Dashboards Heimdall (1) Proxy Auth Authentik
Windows Systems Domain PCs (2) Kerberos Active Directory
